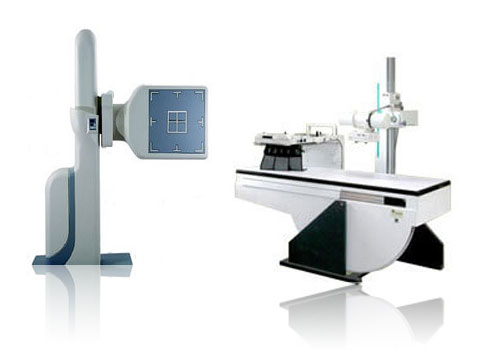

Digital X-Ray Systems
  • BPD CCD
  • CsI / Gd2O2S2
  • 17” X 17” / 17” X 14”
  • 4K X 4K, 16 Million Pixels
  • 108 μm.
  • 4.6 lp / mm
  • 16 bit
  • Double Pixel size to reduce the dose
  • 350 - 1850mm ( Center of the detector )
  • 60 mm / sec.
  • 0 -270°.
  • 12° / sec.
  • Position Indicator
  • Tissue Equalization
  • Filter Correction
  • Gray scale Transform
  • Window / Level Adjustment
  • Gamma correction
  • ROI Equalization
  • Black / White Reversion
  • Image segmentation
  • Mark
  • ROI Equalization
  • 50 KW
  • 40KHz
  • 150 KVP
  • 630 mA
  • X-Ray Filter control
  • Anode launcher
  • Automatic Exposure Control (AEC)
  • Custom design is available
  • RS-232 / RS-422
  • voltage compensation

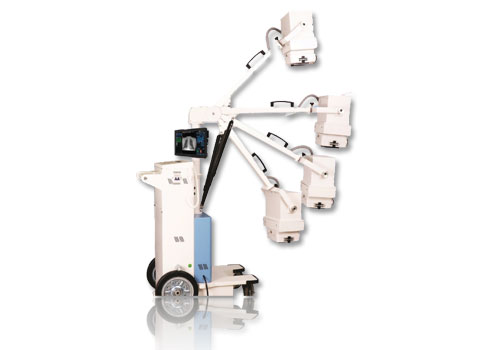

Mobile Digital Radiography Systems

We are a leading healthcare system and service provider in India, offering a comprehensive range of medical equipment, medical supplies, and healthcare services across the nation and the globe. Our rapid growth has allowed us to extend our reach nationwide, providing unparalleled products characterized by technical excellence and superior quality services. Our fundamental strengths have positioned us as leaders in the industry. Mobile DR Our high-frequency Mobile Digital Radiography Systems are ideally suited for use in Emergency Rooms, Intensive Care Units, and for bedside X-rays, all while minimizing radiation exposure. The superior image quality offered by Digital Radiography makes it the preferred method for practitioners.

  • Available in various power options: 2.5 / 3.5 / 6 / 15 / 32 KW.
  • Lightweight and maneuverable design ensures easy mobilization and convenient operation.
  • User-friendly Touch Screen Control Panel.
  • Sleek design delivering fast and outstanding image quality.
  • Equipped with a 14” x 17” portable wired / wireless Flat Panel Detector.
  • Microprocessor-based control for high accuracy.
  • Features dual control radiographic functionality, prioritizing both safety and efficiency.
  • Utilizes Stationary / Rotating anode X-Ray tube with Monoblock.
  • LAN connectivity with DICOM printer capabilities.

EP Corsa 2.5 M / 3.5 M / 6 SM / 6 M / 15 M / 30 M / ASTRO 6 M

2.5 / 3.5 / 6 / 15 / 32 kW (60 - 400 mA)

EP Corsa / Astro HF Mobile DR
We are committed to building a healthier world through our range of world-class products.

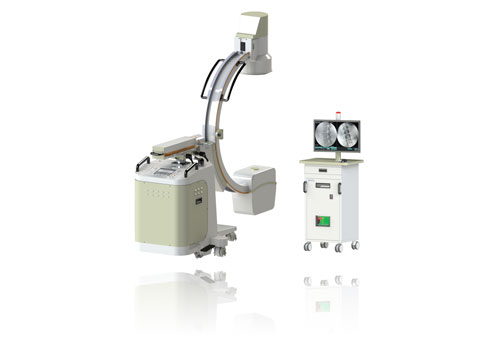

C Arm II Tube System

Radping suppliers of High Quality Surgery Mobile C-Arm X-ray Systems

Radping Providing sales and service provider of advanced radiographic and C-Arm X-ray System with sharp and clear image. Our is latest generator design and simplified positioning to provide ideal system for today's complex surgical procedures. Uniquely equipped with a single filed (6") or dual field (9") I.I and ABC, the product offer a consistent superb image quality. It is primarily utilized for surgical, orthopedic, endoscopy, cardiology and ER procedures.

VHFC

3.5KW

40KHz

40 kvp – 100 Kvp Step size (1 kvp)

Fluoroscopy (default)
ABC (Automatic Brightness Control)
Pulse Fluoroscopy
Radiography

40 Kvp – 100 Kvp (step size 1 kvp) (For Radiograph mode) 40 Kvp – 100 Kvp (Step size 1 kvp) (For Fluoroscopy mode)

32 mA – 50 mA (For Radiograph mode) 0.5 – 3 mA (For Fluoroscopy mode)

0.001 sec. – 5 sec

1 mAs – 200 mAs (Radiography mode)

230 V AC, single phase

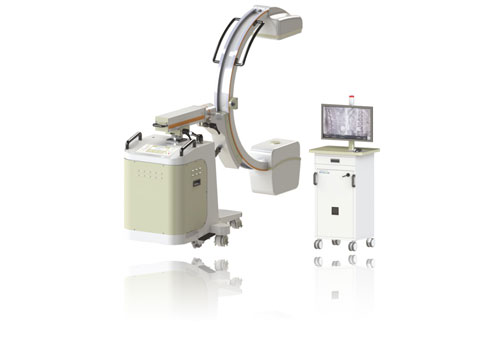

C-Arm - HD FPD System:

Radping suppliers of High Quality Surgery Mobile C-Arm X-ray Systems

Radping Providing sales and service provider of advanced radiographic and C-Arm X-ray System with sharp and clear image. Our is latest generator design and simplified positioning to provide ideal system for today's complex surgical procedures. Uniquely equipped with a single filed (6") or dual field (9") I.I and ABC, the product offer a consistent superb image quality. It is primarily utilized for surgical, orthopedic, endoscopy, cardiology and ER procedures.

VHFC

6KW

40KHz

40 kvp – 120 Kvp Step size (1 kvp)

Fluoroscopy (default)
ABC (Automatic Brightness Control)
Pulse Fluoroscopy
Radiography

40 Kvp – 120 Kvp (step size 1 kvp) (For Radiograph mode) 40 Kvp – 120 Kvp (Step size 1 kvp) (For Fluoroscopy mode)

50 mA – 150 mA (For Radiograph mode) 0.5 – 3 mA (For Fluoroscopy mode)

0.001 sec. – 5 sec

1 mAs – 200 mAs (Radiography mode)

230 V AC, single phase

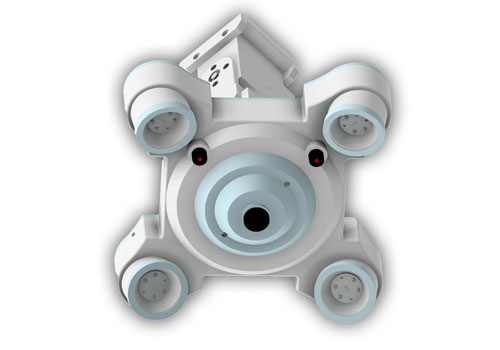

Highnoon – CT Guided Biopsy Navigation Device:

HighNoon is India's first shadow-based, CT-guided instrument positioning assistant
It is designed to aid clinicians in performing high-risk and high-precision percutaneous medical interventions.sss

  • The accuracy of needle placement in CT-guided interventions is highly dependent on the physician's skill and experience.
  • Vulnerable anatomy near the target area is susceptible to injury.
  • Conventional techniques often require multiple needle adjustments and intra-procedural imaging
  • This leads to longer procedures
  • It also increases patient pain
  • Radiation exposure is increased
  • Procedural risk is increased
  • HighNoon offers complete procedural control through a user-friendly planning station.
  • It provides simple, shadow-based, real-time guidance.
  • It allows for confirmation of instrument placement.
  • It helps users target lesions of any size and location.
  • HighNoon aims to improve efficacy by enabling accurate instrument placement.
  • It minimizes iterations.
  • It reduces patient puncture and radiation.
  • It promotes quicker procedures.
  • It allows for better scanner utilization.
  • It improves patient and clinician comfort.
  • HighNoon employs a three-level confirmation process to ensure needle point accuracy
  • The first level is laser crosshair alignment to the center of the needle hub.
  • The second level is the alignment of all 4 needle shadows to the laser crosshair.
  • The third level is the alignment of the needle hub to the center of the green circle on the monitor.
  • Clinical data shows HighNoon achieves 2mm positioning accuracy.
  • It has a 3% manipulation rate.
  • The average time to place the needle is 11 minutes.
  • The average wheel-in and wheel-out time is 26 minutes.
  • These averages are calculated from 55 patient data points.

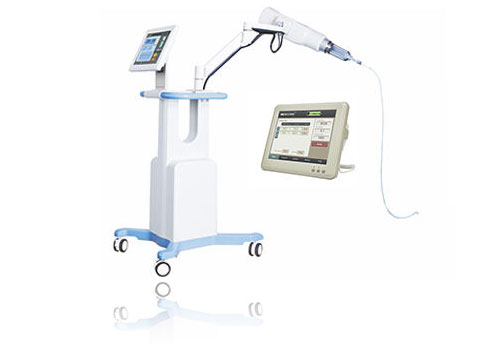

Zenith H15 High Pressure Angiography Injector:
  • Large color touch-screen makes the operation more intuitive and makes the injection planning and  process  controlling easier
  • Clear and perspicuous operate screen
  • Multiple, safe and reliable ports work well with different imaging equipments
  • 0.1 to 50 ml/sec. in 0.1 ml/sec. increments
  • 0.1 ml to max. syringe capacity in 0.1 ml increments
  • 150ml
  • Settable from 300 psi to 1200 psi in 1 psi increment.

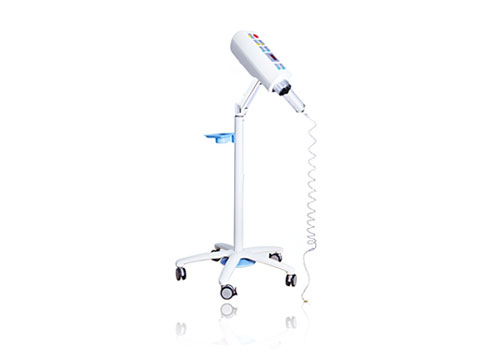

Zenith C-10/C-20 CT Single Head Pressure Injector

Zenith CT injector is made for the injection of a contrast agent in enhanced the imaging of CT scan and MRI as well as DSA angiography systems. Zenith is one of the national standard Contrast media Injector.

Characteristic Zenith CT injector is controlled by a computer system. It takes advantage of specialized syringes and other accessories, so the cost of injection is very low. The delivery rate and volume satisfy all the criteria required by enhanced CT scan.

  • The highest delivery rate: 9.9ml/s, the lowest delivery rate: 0.1ml/s. The large range of rate from 0.1ml/s to 9.9 ml/s satisfies all of the requirements for any enhanced CT scan. One to four phases injections meet a variety of CT injection’s need.
  • Large-size disposable syringe meets various requirements for volume of any enhanced CT scan.
  • The highest pressure limit increase the safety of process
  • Relay input/output interface connects to different CT scan facilities in the safest manner.
  • Small diameter pipe tube reduces the waste of contrast agent, and synchronizes the delivery of contrast agent and scan.
  • Long-distance control box enables the user to monitor it in either control room or scanning room.
  • Flow Rate: 0.1 to 9.9 ml/sec. in 0.1 ml/sec. increments
  • Syringe Capacity:  100ml for Zenith-C10,200ml for Zenith-C20
  • Volume:1 ml to syringe capacity in 0.1 ml increments
  • Preset limit: 50 psi default, user settable 100 to 300 psi
  • Injection or Scan Delay: 0 to 99 seconds in 1 sec. increments.

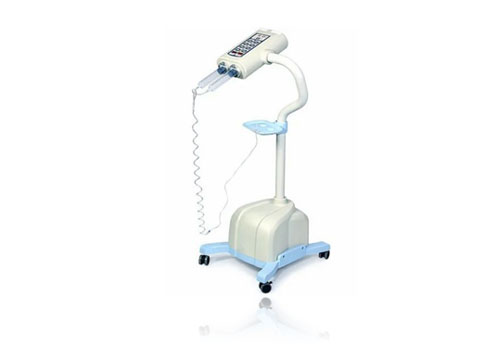

Zenith C11/C22- CT Dual Head Pressure Injector

Zenith Dual Syringe CT Injector can match all the demands of contrast-enhanced scan for Multislice-CT MS-CT including the most advanced clinical applications.

  • Large color touch-screen makes operate more intuitionists and makes injection planning and process controlling easier.
  • Clear and intelligible operate screen.
  • Flexible injection design can help you realizing the simplest 1 phase single syringe injection, or finishing the complicated 6 phases dual syringe injection. All are in your control.
  • The elaborate assistant tray on which operator can place the fluid bottles or other things, and put the connector tubing or the scalp vein set in the special place.
  • Flow Rate: 0.1 mL/sec. to 10 mL/sec. in 0.1 mL/sec. increments
  • Syringe Capacity: 100ml for Zenith-C11,200ml for Zenith-C22
  • Volume: 1 ml to syringe capacity in 0.1 ml increments
  • Preset limit: 325 psi default, user settable 100 to 300 psi
  • Injection or Scan Delay: 0 to 600 seconds in 1sec. increments.
Zenith C60 - MRI Pressure Injector

Zenith MR Injector with non-magnetic structure can meet all your need in CE-MR imaging and have multiple helpful features.C60 is compatible with magnetic force up to 3T MR imaging system

  • Delivering saline after the injection of contrast medium, which enhance the quality of imaging.
  • KVO procedures prevent the position of injection from blood coagulation.
  • Excellent performance, 8 Amp. hour battery offers longer scan times between charges
  • Independent KVO procedure
  • On-screen tutorial for the simplification of set-up procedure
  • Flexible power management with Integrated Continuous Battery Charger option allows either full, non-tethered battery operation or continuous battery charging through AC power connection – switch to either battery or power source in seconds
  • Mobile configuration available for MR trailers
  • Multi-phase injection control
  • 0.1 ml/sec. to 10 ml/sec. in 0.1 ml/sec. increments
  • 65ml
  • 0.1 ml to syringe capacity in 0.1 ml increments
  • 300psi factory set
  • 0 to 1000 seconds in 0.1 sec. increments.

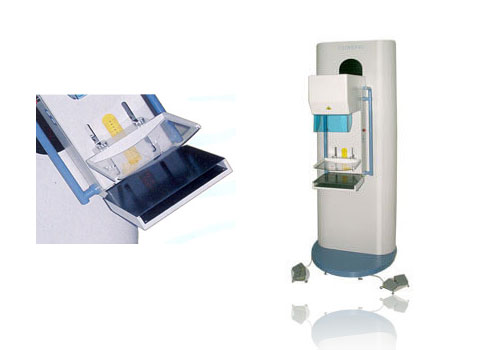

Mammography Systems

Radping is leading Sales and Supplier of Mammography Systems, Control Panels, X-ray tube, High Frequency Generator.

VISIMAM is a state–of–the-art breast cancer detection system that is design to improve the quality and comfort of mammograms. The system produces high quality of images that allow for better visualization of breast tissue, aiding the early detection of breast cancer. This advanced system also includes features, that reduce procedure times and improve patient comfort. VISIMAM series of Mammography Systems delivers high quality breast images-consistently, efficiently and easily.

High quality rotating anode X-ray tube Generator Type –High Frequency 40 KHz:HF HT generator adopts new IGBT tube and programmable logic array technology with 40 KHz working frequency to contribute more stable power out put, less straggling-rays & high picture contrast

Incorporating the latest innovative technology, including revolutionary exclusive Automatic Self-adjusting Tilt Paddle. This system provides unsurpassed image quality while its automated features simplify operations and ensure consistent system performance and connection with CR. The A.S.T. Paddle (optional accessory) assures more uniform compression across the entire breast and improves immobilization of breast tissue, resulting in reduced mobile artifacts and superior image quality

Paddle prevents over-compression at the chest wall by showing pressure numeral, maximizing patient comfort. The integrity exposure film 4mm deeter breast tissue is visualized. Multi-mammograms in one film is possible.

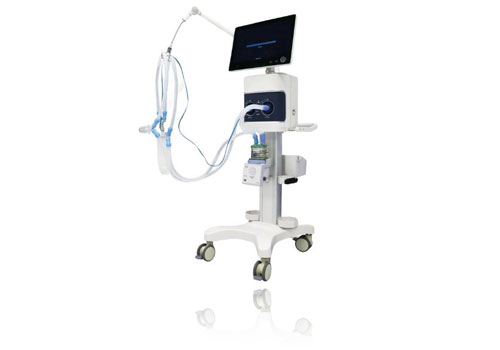

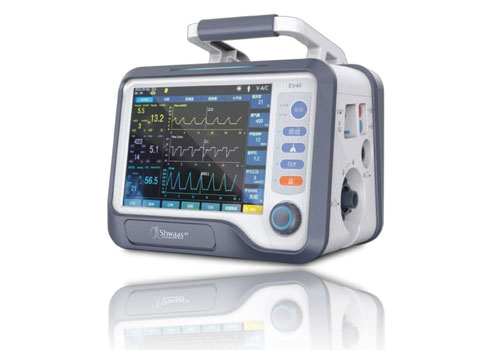

ICU Ventilators 10T
  • Adult, Child..
  • VCV, VCV +Sigh, PCV, PRVC, SIMV+VCV, SIMV+PCV, SIMV+PRVC, SPONT (CPAP/PSV) BIPAP, APRV, NIV/CPAP, NIV/PCV
  • 20 - 2500ml
  • 1:10-10:1
  • 0.1-12 s
  • 0-50%
  • PEEP-20 to Ocm H20
  • 1 - 20 LPM
  • 0-50 cm H20
  • 0- 70 cm H20
  • 5 - 70 cm H20
  • 21-100%
  • 0 - 70cm H20
  • 0 - 70 cm H20
  • 100% 02 Ventilation
  • 15s Max
  • 15s Max
  • Yes
  • 0-60 minutes
ICU Ventilators 15T
  • Adult, Peadiatric, Neonatal
  • VCV, PCV, VSIMV, PSIMV, CPAP/PSV, V+SIMV, BPAP, ASV, APRV, VS, PRVC
  • 2ml ~ 4000ml
  • 1 ~ 100 times/minute
  • 10:1 ~ 1:10
  • 0-80 cm H2O
  • 5-80 cm H2O
  • Off, 1-50 cm H2O
  • 21-100 vol%

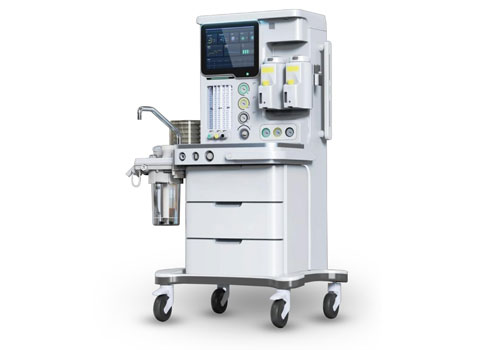

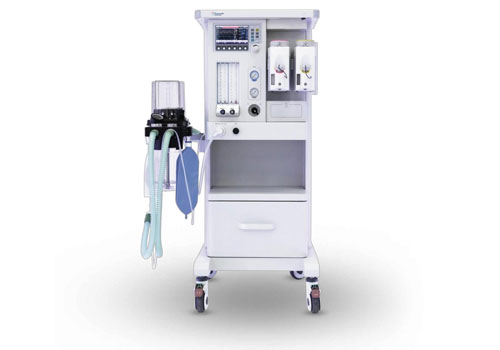

Anesthesia Workstation - PRO
  • Available with 2-3 gas sources- oxygen, nitrous oxide & Air.
  • Adult, Child
  • VCV, PCV, MAN (In manual mode, the switch is toggled to manual mode in one step.) SIMV-VC, SIMV-PC, PSV
  • 20 ~ 1500 mL
  • 20 ~ 1500 mL
  • 0 ~ 60 L/min
  • 0 ~ 100 bpm
  • 18 vol% ~ 100 vol%
  • 0 ~ 70 cm H2O

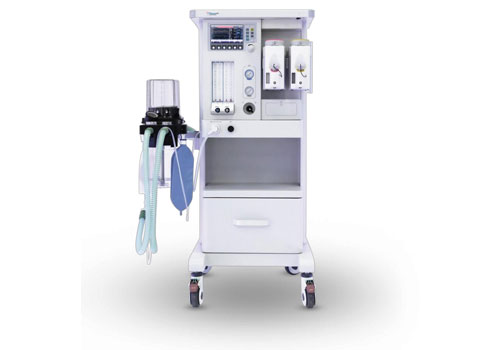

Anesthesia Workstation - PLUS
  • Adult, Child
  • 20 ~ 1500 mL
  • 20 ~ 1500 mL
  • 0 ~ 60 L/min
  • 0 ~ 100 bpm
  • 18 vol% ~ 100 vol%
  • 0 ~ 70 cm H2O
Anesthesia Workstation - Advance
  • Standard configuration with 3 gas sources- oxygen, nitrous oxide and air.
  • Adult, Child
  • VCV,PCV, SIMV-VC, SIMV-PC, PSV,PSV ,Backup ventilation
  • 1500 mL
  • 0~120 Times/Minute
  • 10:1 - 1:10
  • 18% ~ 100%
  • 20cmH2O ~ 120cmH2O
  • 0cmH2O ~ 70cmH2O
Hyperion X5 3D PAN:

Indicates the device is a 3D Panoramic Imaging System

Complete examination of the 2 arches in a single scan for adults and children (reduced collimation); Examinations of the maxillary region with maxillary sinuses**; Examination localized in the region of interest.

6.3 lp/mm (Voxel 80 µm)

  • DENT and SIN**: 10 (diameter) x 10 (height) 10 (diameter) x 7 (height);
  • 10 (diameter) x 6 (height);
  • 8 (diameter) x 7 (height); 8 (diameter) x 6 (height);
  • 8 (diameter) x 10 (height); 6 (diameter) x 7 (height);
  • 6 (diameter) x 6 (height);

720MB

1 a 1 (isotropic voxel)

16.8 s (Best Quality) Standard: 9.6 s (Regular) Quick Scan: 6.4 s (Low Dose)

FOV:10x10 | 35 µSv (Voxel 160 µm) - 121 µSv (Voxel 80 µm)

FOV: 6x6 | 9 µSv (Voxel 160 µm) - 40 µSv (Voxel 80 µm)

15 Second

SMART (Streak Metal Artifact Reduction Technology)

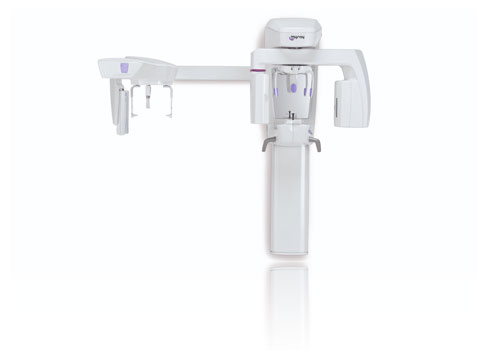

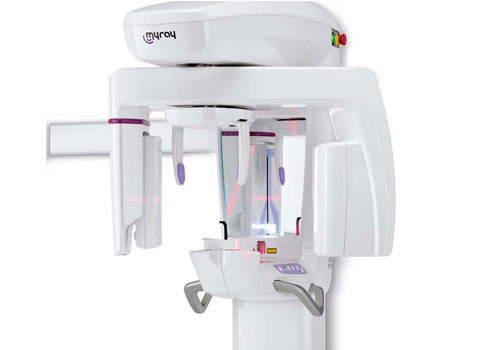

Hyperion X5 2D PAN

Complete or partial adult and child panoramic imaging*, Orthogonal Panoramic imaging, QuickPAN, MultiPAN, Dentition, Bitewing* Frontal and Lateral (right and left) maxillary sinuses, Temporomandibular Joint (2 x Lateral + 2 x Frontal) open and closed mouth. Teleradiography: Skull AP-PA, LL Short/Long, Standard/Quick; Carpal teleradiography.

  • 2D: 5 - 6.9 lp/mm (Pixel 100-73 µm)
  • CEPH: 5.6 lp/mm (Pixel 89 µm)
  • PAN: 26.2 (length) x 14.4 (height)
  • CEPH: 29.2 (length) x 22 (height)
  • PAN: 21 (length) x 11.5 (height)
  • CEPH: 25.8 (length) x 19.4 (height)
  • PAN Child: 18 (length) x 10 (height)
  • Dentition: 14 (length) x 10 (height)
  • Bitewing: 16.7 (length) x 7 (height)

PAN: 7.5 MB (single image) CEPH: 14 MB

PAN: 1.2 - 1.3 CEPH: 1.13

13.7 s (ORTHO); 12.2 s (STD); 6.8 s (Quick Scan) CEPH: 9.9 s (STD); 3.7s (Quick Scan))

5 - 9 µSv

RealTime

PiE (Picture image Enhancer) PAN Focus-Free

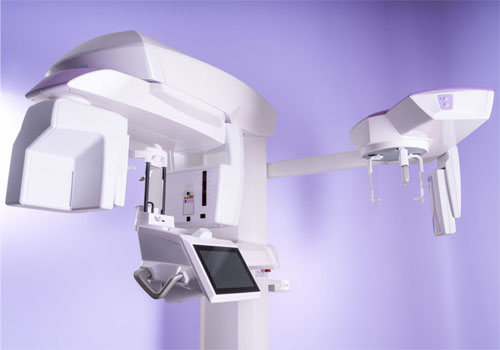

Hyperion X9 Pro CBCT 13*18 FOV

Detector technology - Amorphous silicon - CsI with direct deposition

Dynamic range 16 bit (65,535 grey levels)

T*ypical scan time 14.4 s

Rotation 360°/180°

Image voxel size Minimum 75 µm Minimum 68 µm

Available FOV sizes (Oxh) - 6x6 - 8x6 - 8x8 - 10x6 - 10x8 6x6 - 8x6 - 8x8 - 10x6 - 10x8 -10x10 - 13x8 - 13x10 - 13x16,

Typical image size from 495 MB to 820 MB

QuickPan (low dose): Describes a feature that minimizes radiation exposure during panoramic imaging.

MultiPAN Function: Suggests the device's ability to perform multiple panoramic scans.

MRT (Morphology Recognition Technology): Indicates the use of advanced technology for improved image quality

Adjustments on touch panel on machine and/or iPhone/Android Phone 2-speed height drive Examination selection Virtual control panel on PC, Windows tablet and/or iPad

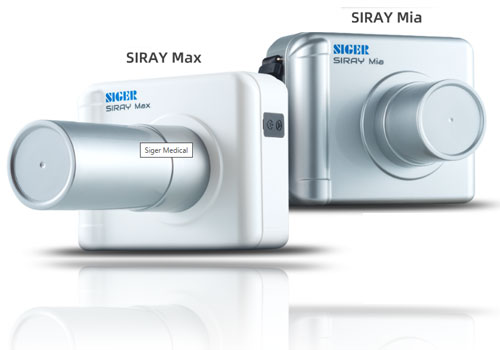

Portable dental x ray

Our range of portable dental X-ray units, including the SiRay Max and SiRay Mia, are designed with a focus on a Humanized Design for ease of use and patient comfort.

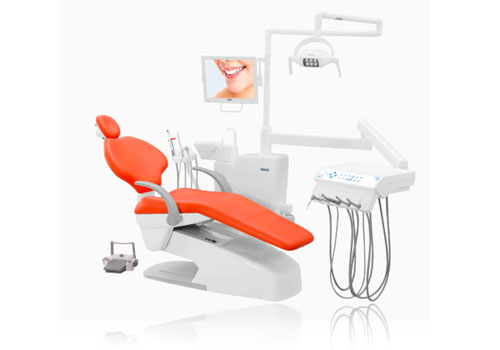

Dental Chairs

The Dental Unit U100 Standard delivers a suite of essential features designed for efficient dental practice. Its configuration includes a swing-type/hanging-type dentist element, a dentist control panel, and a built-in intraoral X-ray film viewer. It is equipped with two 2-hole tubings for turbine, one 2-hole tubing for air motor, and a 3-way syringe for the dentist. For the assistant, the unit provides a dedicated control panel, a 3-way syringe, a hydraulic saliva ejector, and a pneumatic suction system.
